How to paracord wrap a folding stock


  • Please log in to reply
3 replies to this topic

#1 T1gger

T1gger

    Member

  • Member
  • Pip
  • 99 posts

Posted 14 February 2010 - 05:38 PM

I put this in the General section, but this may be a better spot for it obviously. Instructions and pictures on paracord wrapping a side-folder.

Last week I paracord wrapped my whole Romanian side-folder in green paracord. While at a gun show today, I saw some tan paracord (naive of me to think that they didn't make it in that color), and since I initially wanted that color furniture, I bought some. I hated having to take down all that hard work from the previous wrap, but figured I would go through the steps of how I wrap the stock since I had questions about it from a previous thread and since the thread I got it from online is no longer a working link. So here it is.

For those wondering about cord length to wrap the whole stock:
Long straight arm of stock: give yourself about 7 feet of cord
Upper limb after the fork: give yourself about 2 feet of cord
Lower limb w/ shoulder rest: another 7 feet of cord
These lengths with give you a little extra cord left over to make sure you didn't cut them too short to finish the job.

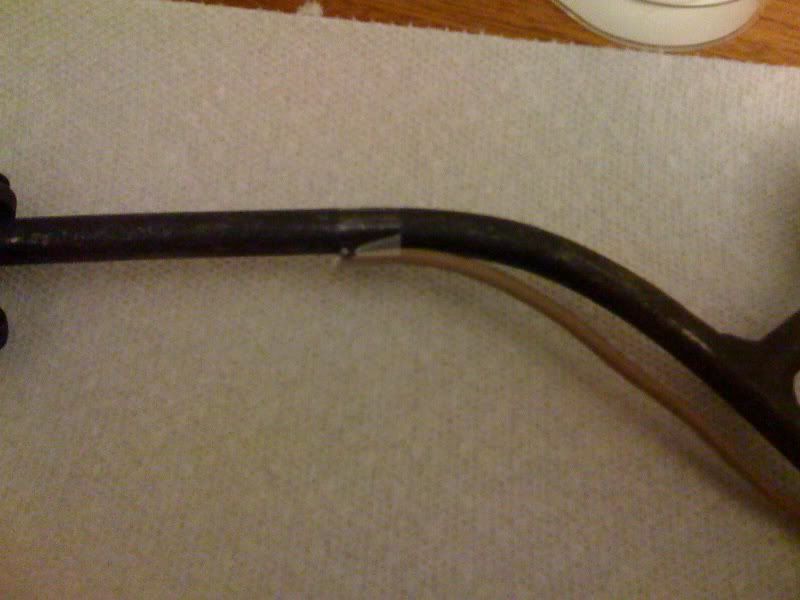

First, melt (lightly) one end of your cord and tape it to the underside of the stock. I say underside because it makes the finished product look better. If you can tape this semi-high (a little higher than I have it in this picture), it will make the last step easier.
Posted Image

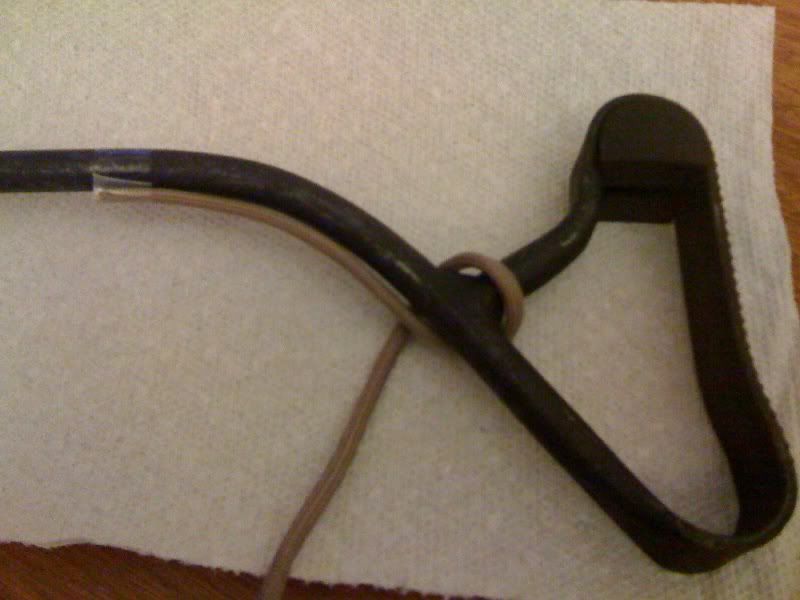

Continue to run the cord beneath the stock and then loop it around the top arm of the fork in the stock.
Posted Image

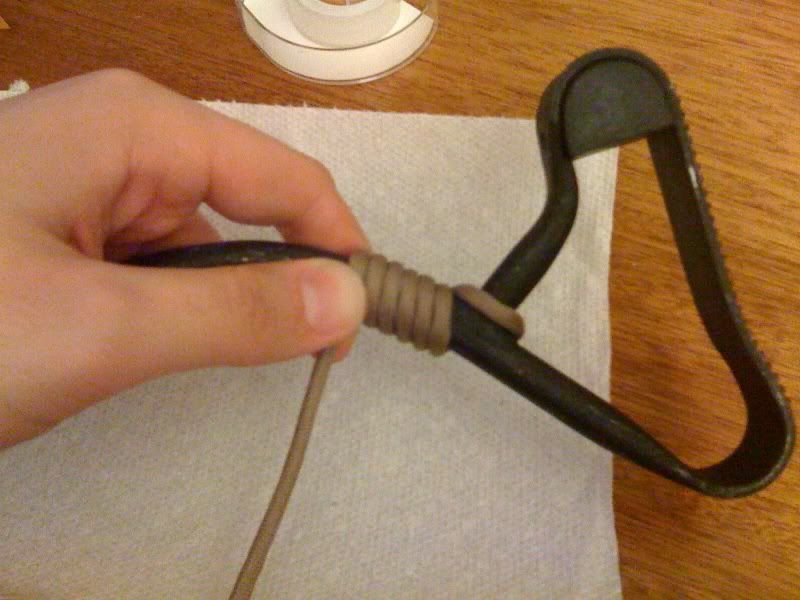

Now you'll want to start looping the cord around the stock. Make sure to keep the original run of cord beneath the stock in as straight a line as possible.
Posted Image

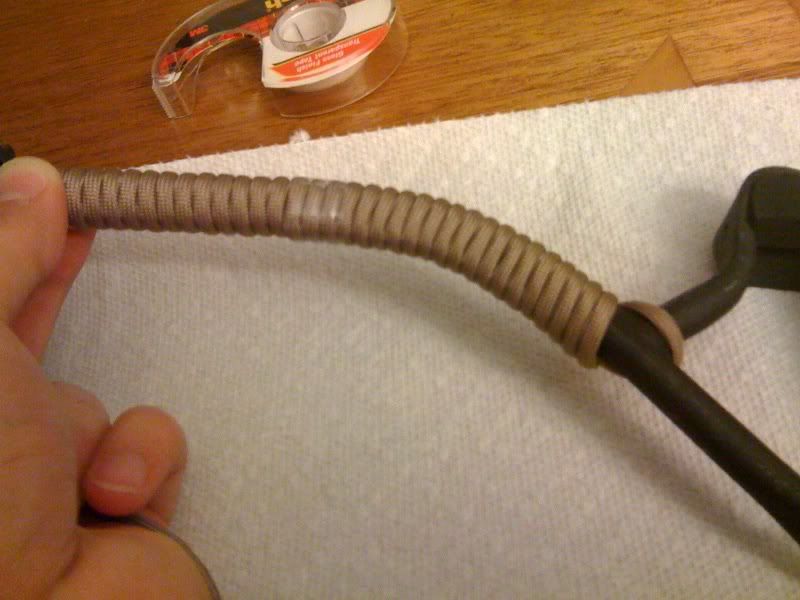

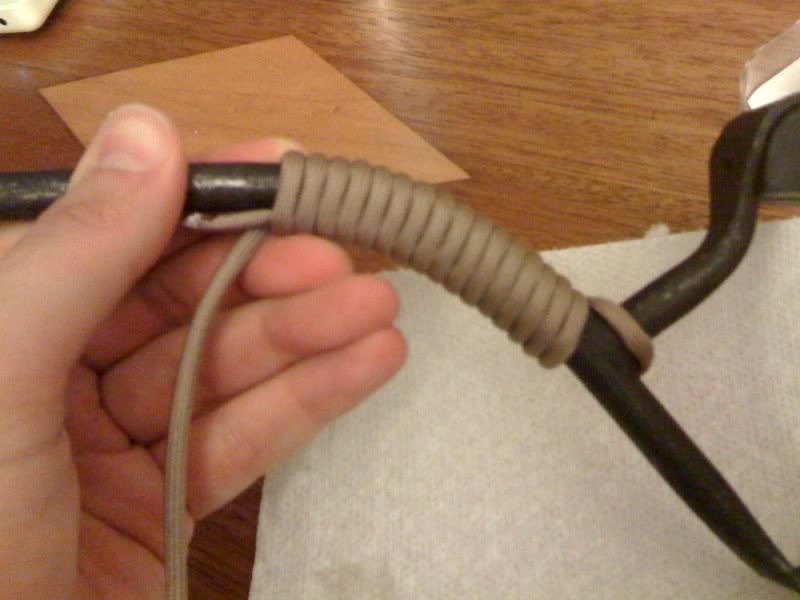

Once I've made a few loops, I take the tape off of the original piece so that it doesn't cause problems later
Posted Image

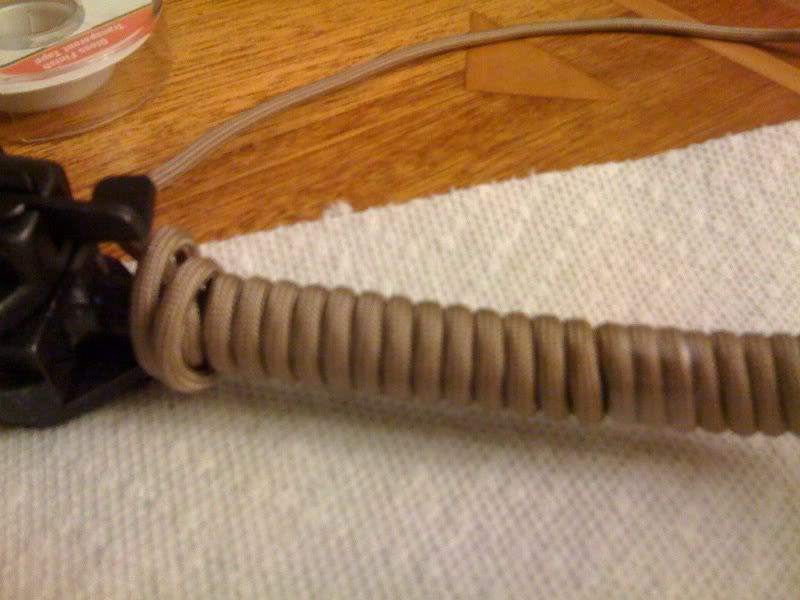

Keep running the loops up the stock. Keep them tight and close together. Now comes the tough part. Once you reached the end of the stock, you're going to have to loosen the cord. Before doing this, put a piece of tape around the initial end that you started with (you'll be able to tell because this part is bigger than the rest).
Posted Image

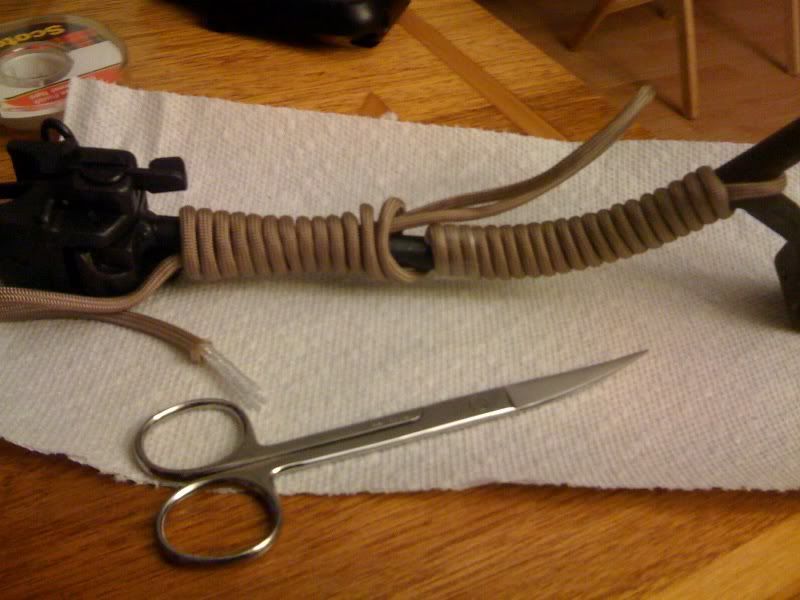

After placing that piece of tape, you can begin loosening the those top loops. Begin working your free end under the loops. I use the back side of the scissors in the picture.
Posted Image
Posted Image

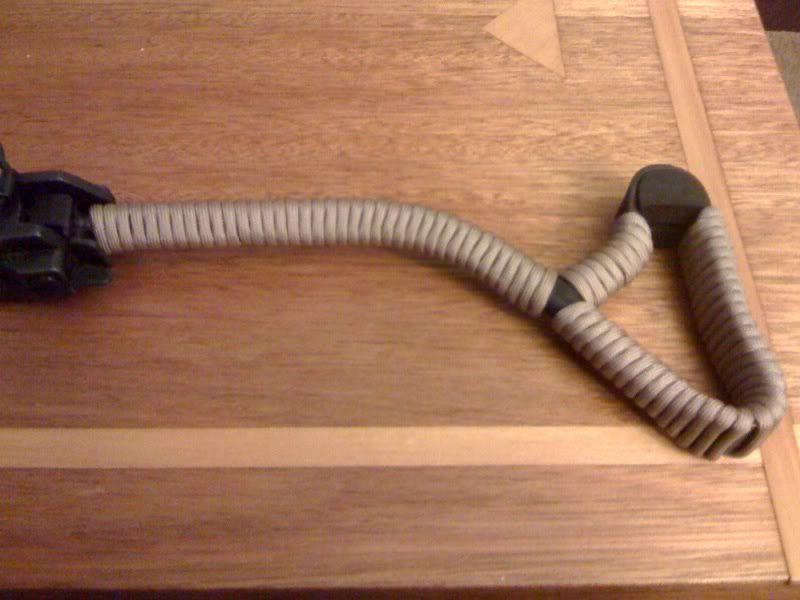

This particular part of the process is a pain. It's a lot of untwisting, tightening by twisting, and simultaneously working the free end down, pulling it tight so that you have nice tight loops for the full length of the stock. The ultimate goal is to have an end sticking out of the loop right about where the original end began. This is so the the 2 ends basically abut and give a nice uniform look. Once you have everything tight, you want to cut the free end that you have been pulling on so that it's able to meet the original end. Lightly melt it with a lighter, and tuck it under the loop right above the loop covering the original end. The result should be a uniform, tight wrapping.
Posted Image
I apologize for the poor pic quality, and I'd like to thank whichever guy it was out there who made the original thread that helped me do this, but somehow had his thread deleted (or at least the link doesn't work anymore).

#2 Blackjack_21

Blackjack_21

    Member

  • Member
  • Pip
  • 88 posts
  • Gender:Male
  • Location:Del City, OK

Posted 12 March 2010 - 02:47 AM

Very nicely done. I had the crazy idea to wrap my triangle folder, but the fun part was going to be how to pass the spool through the stock, over and over again...

#3 scoutjoe

scoutjoe

    The village idiot

  • Contributor
  • PipPipPipPipPip
  • 4,210 posts
  • Gender:Male
  • Location:middle of nowhere, Pa

Posted 12 March 2010 - 08:53 AM

Attached File  Paracord stock wrap (1) (Medium).JPG   64.88KB   50 downloads

Just feels better, I need to redo it though on the bottom.
"Additionally, I refuse to date a girl if she doesn't know how to proficiently load, unload, and operate any of my weapons"~AegisDei

"Tony has a credibility in the gun industry that bullshit cannot tarnish"~BobAsh

From the Skippy List
87. If the thought of something makes me giggle for longer than 15 seconds, I am to assume that I am not allowed to do it.

Gun owner in PA? You need to check this out http://www.pafoa.org/

#4 T1gger

T1gger

    Member

  • Member
  • Pip
  • 99 posts

Posted 12 March 2010 - 03:37 PM

Attached File  Paracord stock wrap (1) (Medium).JPG   64.88KB   50 downloads

Just feels better, I need to redo it though on the bottom.


Very nice indeed.
