Did a lot of checking.. Seems I get to blame the heat treat shop a little more.

Magazine body on several of the samples are spread in the middle allowing the fronts of the rounds to semi stagger and thus lowering the fronts by almost 1/8" by round 8.



I'm seeing that several of the poly magazines spread by almost this amount when loaded which is why they are made with a steeper curve.. Our mags don't spread when loaded, but they are spread due to thermal shock (or whatever the correct term is). That should be correctable.



That at least makes some sense pertaining to how you were able to get so much sucess from your proto without failures. What kind of ammo was the testing done with mainly? I did notice last night when I got to the range for a few mags, the only ammo that has fed so far at all without a low feed problem on the 1st few rds was a tad bit shorter shells. The Winchester AA Super-Handicap #8 shot.

The Federal Multi Purpose loads did better than the Win Universal (as expected, that stuff sucks...) but still fed low on the top rds and hung up going in (FTF).

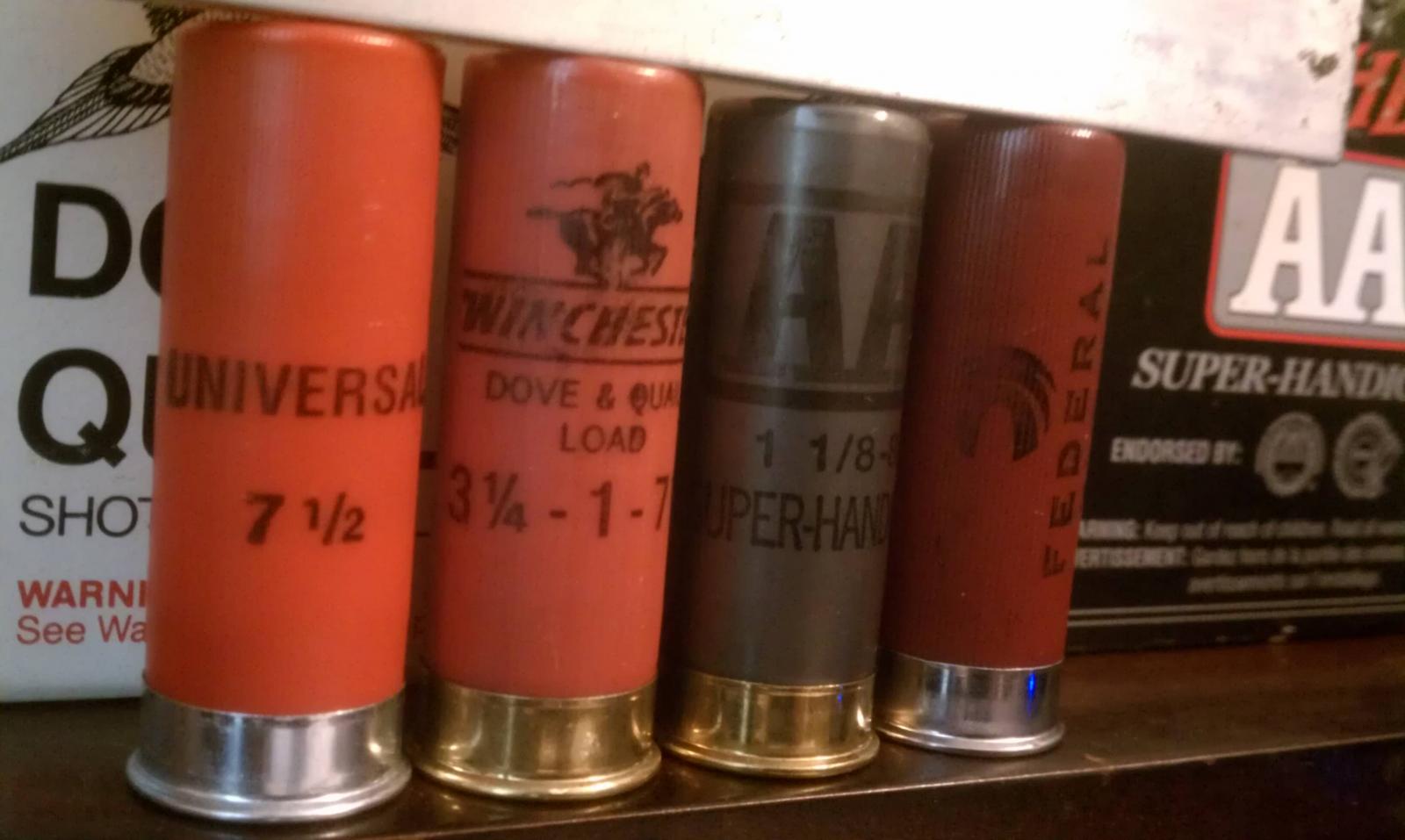

Here are the shells I've tried so far and the result stats so far. I will try to get a few more rounds through a different gun today, an unconverted one or two just to see. Pretty sure this prob is terminal with this mag though without mods...







The "#1 and #2" in the left column stands for the two guns used so far for testing. Both converted S-12s, #1 is my blonde. Models 2000 and 2008 Ignore the first line in blue, that was already filled in and I oopsed and put a #1 by it.








If anyone could pm or post instructions on how to get a lock id love you forever. Im going back today and would really like to hold the hg smile.png



I figured a little off the bottom would work but am not the best with a file.



Here ya go beefcake. This is what I did and mine fits tight as can be now. Just take it slow and be careful not to do the final adjustment til most of the material is already removed. Leave some then slowly file & fit til it's right. The catch has a lot more room for movement inward so don't worry about going too far in toward the mag body. You can take it all the way to the base of the reinforcement. It's taking too much off toward the top of the lug that will make the mag fit loose.



Other pics in post #136



attachicon.gifcsspecs mag lug mod.JPG



attachicon.gifStep mods.jpg





That would not have helped with mine. The lug just touched with the latch at full stroke. I wonder if your mag body is longer front to back or the lug is located differently on the vertical axis than mine or whether that is a gun variance.

I'll put up pics this p.m.





Gunfun it def sounds like your mag has to be different, or these damn guns are worse off than I thought even!

Will come back with some measurements I sent to csspecs earlier in a PM.
